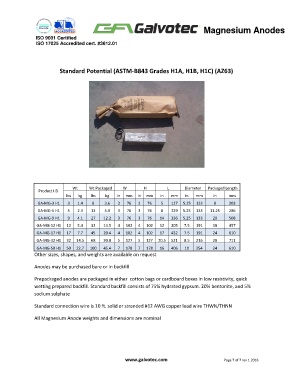

Page 7 - Magnesium Anodes

Magnesium Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

Standard Potential (ASTM-B843 Grades H1A, H1B, H1C) (AZ63)

Wt Wt Packaged W H L Diameter Packaged Length
Product I.D.
lbs kg lbs kg in mm in mm in mm in mm in mm
GA-MG-3 H1 3 1.4 8 3.6 3 76 3 76 5 127 5.25 133 8 203
GA-MG-5 H1 5 2.3 13 5.9 3 76 3 76 8 229 5.25 133 11.25 286
GA-MG-9 H1 9 4.1 27 12.2 3 76 3 76 14 336 5.25 133 20 508
GA-MG-12 H1 12 5.4 32 14.5 4 102 4 102 12 305 7.5 191 18 457
GA-MG-17 H1 17 7.7 45 20.4 4 102 4 102 17 432 7.5 191 24 610
GA-MG-32 H1 32 14.5 68 30.8 5 127 5 127 20.5 521 8.5 216 28 711
GA-MG-50 H1 50 22.7 100 45.4 7 178 7 178 16 406 10 254 24 610
Other sizes, shapes, and weights are available on request

Anodes may be purchased bare or in backfill

Prepackaged anodes are packaged in either cotton bags or cardboard boxes in low resistivity, quick
wetting prepared backfill. Standard backfill consists of 75% hydrated gypsum. 20% bentonite, and 5%
sodium sulphate

Standard connection wire is 10 ft. solid or stranded #12 AWG copper lead wire THWN/THNN

All Magnesium Anode weights and dimensions are nominal
