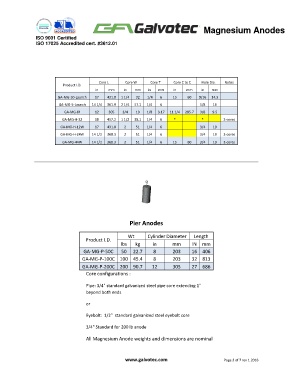

Page 3 - Magnesium Anodes

Magnesium Anodes

ISO 9001 Certified
ISO 17025 Accredited cert. #3612.01

Core L Core W Core T Core C to C Hole Dia. Notes
Product I.D.
in mm in mm in mm in mm in mm
GA-MG-10-Launch 17 431.8 1 1/4 32 1/4 6 15 60 9/16 14.3
GA-MG-5-Launch 14 1/4 361.9 2 1/4 57.1 1/4 6 5/8 16
GA-MG-JR 12 305 3/4 19 1/8 3.17 11 1/4 285.7 3/8 9.5
GA-MG-H-22 18 457.2 1 1/2 38.1 1/4 6 * * 2-cores
GA-MG-H-12W 17 431.8 2 51 1/4 6 3/4 19
GA-MG-H-24W 14 1/2 368.3 2 51 1/4 6 3/4 19 2-cores
GA-MG-44W 14 1/2 368.3 2 51 1/4 6 15 60 3/4 19 2-cores

Pier Anodes

Wt Cylinder Diameter Length
Product I.D.
lbs kg in mm IN mm
GA-MG-P-50C 50 22.7 8 203 16 406
GA-MG-P-100C 100 45.4 8 203 32 813
GA-MG-P-200C 200 90.7 12 305 27 686
Core configurations :

Pipe: 3/4" standard galvanized steel pipe core extending 1"
beyond both ends

or

Eyebolt: 1/2" standard galvanized steel eyebolt core

3/4" Standard for 200 lb anode

All Magnesium Anode weights and dimensions are nominal

www.galvotec.com Page 3 of 7 rev 1 2016
